Agricultural Commercial Grass Greenhouse with Electrical or Water Heating System

Name: Agricultural Commercial Grass Greenhouse with Electrical or Water Heating System
Brand: Litai
SKU: Litai
Price: 4.99 USD
Availability: InStock
Rating: 5 (136 reviews)

Product Details

Place of Origin: Shandong China

Brand Name: Litai

Payment & Shipping Terms

Minimum Order Quantity: 600 square meters

Price: $4.99 - $11.60/square meters

Packaging Details: be requsted for china agricultural Hydroponic System solar greenhouse.

Supply Ability: 10000 Square Meter/Square Meters per Week

Get Best Price

Product Details

Product Description

Highlight:

Size:	Large	Material:	PE
Type:	Multi-Span Agricultural Greenhouses	Cover Material:	Film
Layer:	Single/Multi	Heating System:	Electrical Or Water Heatiing System
Shading System:	Inside Or Outside Shading System	Cooling System:	Exhast Fans With Cooling Pad
Controlling System:	Automatical Euipment	Section:	4m/8m
Roof Height:	4.8-7.8	Gutter Height:	3-6m
Application:	Vegetable Flower Fruit	Port:	Qingdao

Size:	Large
Material:	PE
Type:	Multi-Span Agricultural Greenhouses
Cover Material:	Film
Layer:	Single/Multi
Heating System:	Electrical Or Water Heatiing System
Shading System:	Inside Or Outside Shading System
Cooling System:	Exhast Fans With Cooling Pad
Controlling System:	Automatical Euipment
Section:	4m/8m
Roof Height:	4.8-7.8
Gutter Height:	3-6m
Application:	Vegetable Flower Fruit
Port:	Qingdao

Agricultural Commercial Grass Greenhouse with Electrical or Water Heating System

Products Description

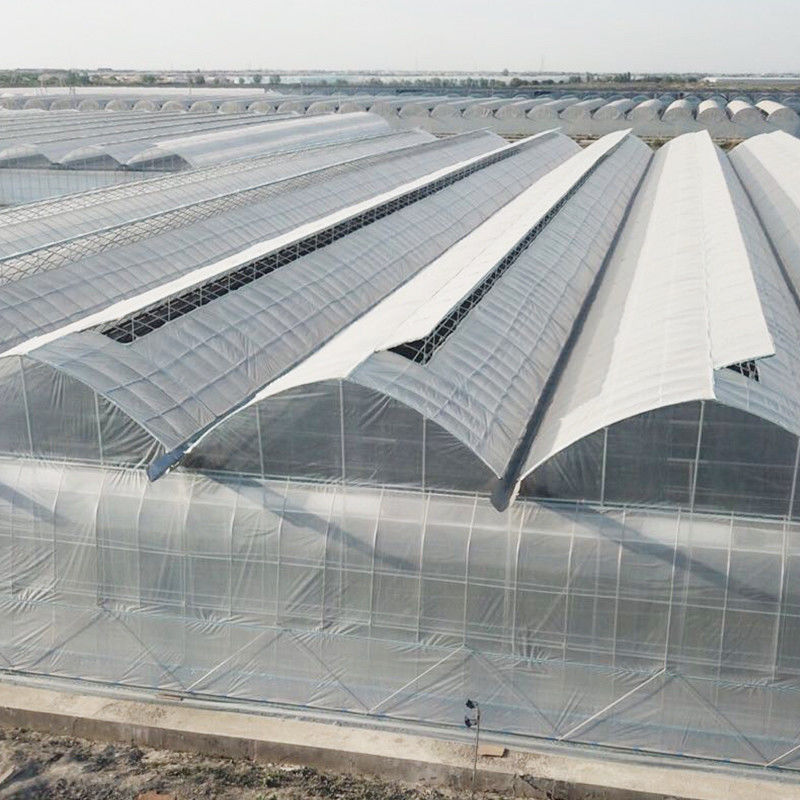

Film greenhouse is also called plastic greenhouse, usually adopt circular arch structure, can be single span or multi-span. The overall shape is beautiful and elegant. Comparing with glass and PC sheet, film is much lighter, the weight load of the steel structure is much lower. Therefore, the cost is relatively lower, which makes film greenhouse an economic greenhouse. At the same time, greenhouses film can be customized into double or multi layers to adapt to local needs. It provides the most economical and affordable planting method, can be combine used with other equipment to adjust the inside climate to meet the requirements.

Structure	Hot galvanized steel frame
Cover Material	150 micron PE film
Length	168m or can be customized
Width	60m or can be customized
Greenhouse Height	6.8m or can be customized
Gutter Height	5m or can be customized
Wind Load	0.35-0.5 KN/m²
Snow Load	0.25-0.4 KN/m²
Rainfall	140mm/h
Applications	Strawberry, watermelon, cucumber, tomato, vegetable, flower and crops

Details Images

The steel structure is made of high quality carbon steel with inside and outside hot galvanized layer which will be not less than 60um. Most connections of greenhouse structure are installed directly by screws or Self tapping screws. The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years.

150/200 microns UV PE Film with life 3-5 years UV treated polyethylene film has function of anti-UV, anti-aging and anti-drip, will be fixed by special film lock channel and wiggle wire.

System configuration

Inside Shading System is installed in the greenhouse, fixed on the truss and with the frame of greenhouse. Inside shading net is made by white aluminum-alloy materials, fastened by white polyester strings.

Internal heat overflow of greenhouse through radiation heat exchange can be stopped effectively in winter and at night so as to reduce energy consumption and reduce.

keep indoor greenhouse temperature

The ventilation system is divided into top and surrounding ventilation systems. Top ventilation is rack window.The surrounding ventilation system is electric film roll up film motor.

Heating system has two types, one type is using the boiler to provide heat, and another uses of electric. Boiler fuel can choose coal, oil, gas and bio fuels. Boilers need laying of pipelines and water warming blower to heat. If use electricity, you need electric warm air blower to heat.

Hydroponic System of greenhouse applies the hydroponics, which refers to the means of cultivation that is equipped with the base materials, not natural soil, when plants are in seed-breeding period and that is fixed with nutrient solutions for irrigation after they are settled, preventing the diseases due to the soil frequently used and the physiological barriers because of the salt accumulation of it and meeting the needs of plants with minerals, water, air and other conditions. The base materials can be recycled, and the hydroponics is characterized with water-saving, fertilizer-saving, labor-saving as well as great harvest and superior quality, etc.

Application

Widely for strawberry, watermelon, cucumber, tomato, vegetable, flower and crops.

Related products

We can produce different type greenhouse：

Packing and shipping

The film covering blackout greenhouse will be packaged by Nude, cartons, bags for The Cheapest Plastic Film Blackout Greenhouse.

Company Profile

Shouguang Litai agriculture Technology Co.,Ltd. is a company specialized in the design and construction of the greenhouse. The company has a modern production workshop of 30,000 square meters, we have large laser cutting machine, plasma cutting machine, CNC bending machine, shearing machine, CNC punch and a series of advanced equipment. The main products are: glass greenhouse, polycarbonate greenhouse, film greenhouse, hydroponics greenhouse, shading greenhouse, planting equipment, etc. Has a complete product system, the mature foreign trade team, a professional design team, support customer customization, to provide customers with the most suitable products. With 25 years of production experience and 5 years of foreign trade experience, the products are exported to North America, Australia, Central Asia, Middle East, Africa and other 30 countries and regions. In addition to providing remote technical guidance, drawings and video materials , the company can also send technicians abroad to guide the installation.

FAQ

Q1: Are you a trading company or a manufacturer? A: We are a factory. Our factory produces all items related to the greenhouse, so we provide the best price, Q2: Do you provide samples? Is it free or extra? A: Yes, we can provide samples for free, but not pay for shipping. Q3: How to get a quotation for the greenhouse? A: Please let us know how many greenhouses are needed? What will be grown in the greenhouse? So that we can suggest related systems Q4: How should I choose a greenhouse system? A: Please let us know where the greenhouse is (temperature, wind speed) Q5: How to assemble the greenhouse when purchasing? A:We have professional after-sales service engineers who will provide planning drawings and installation manuals. You can communicate with him from time to time.If necessary, we can also send engineers to your country to supervise the installation of the greenhouse.Please send a message for specific details.
